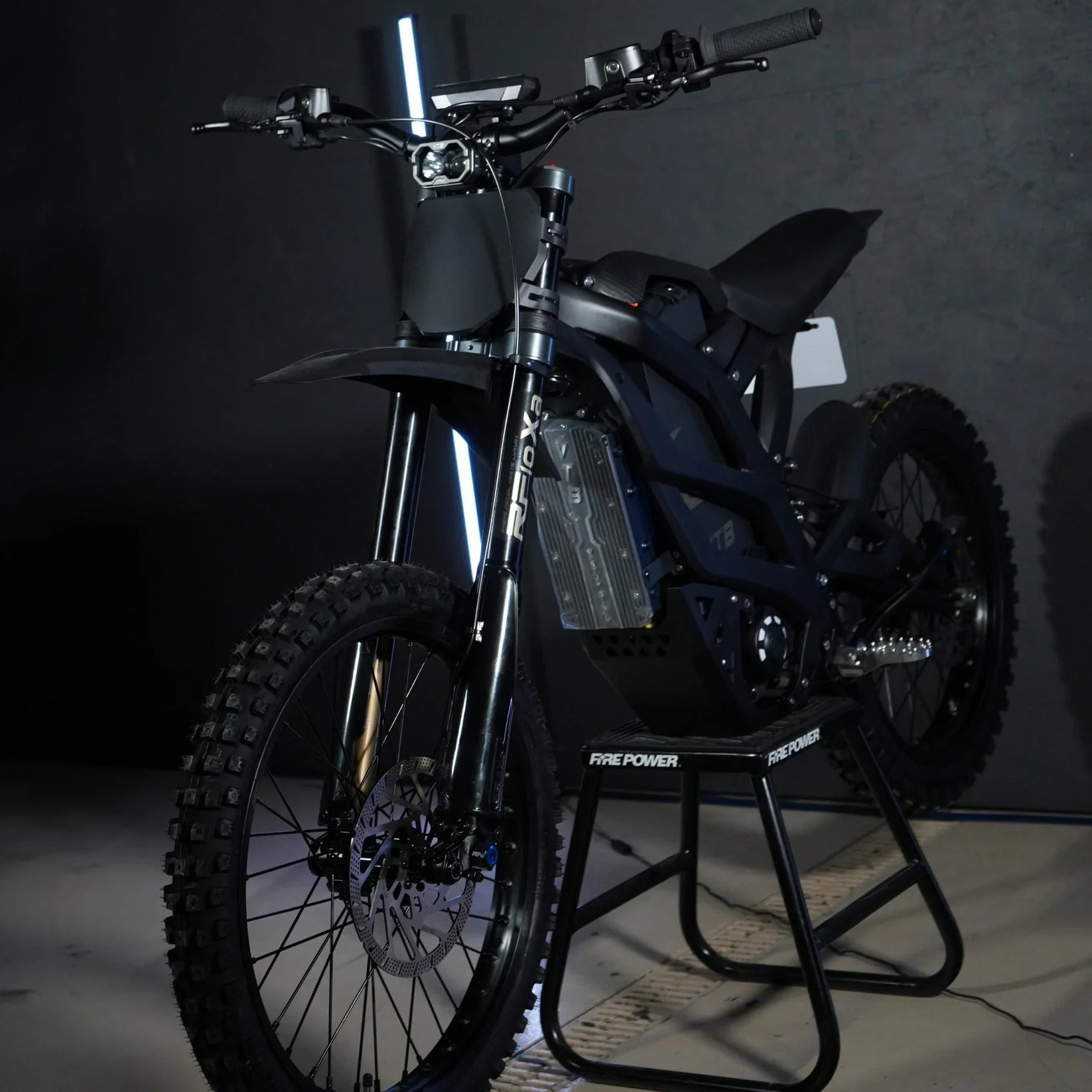

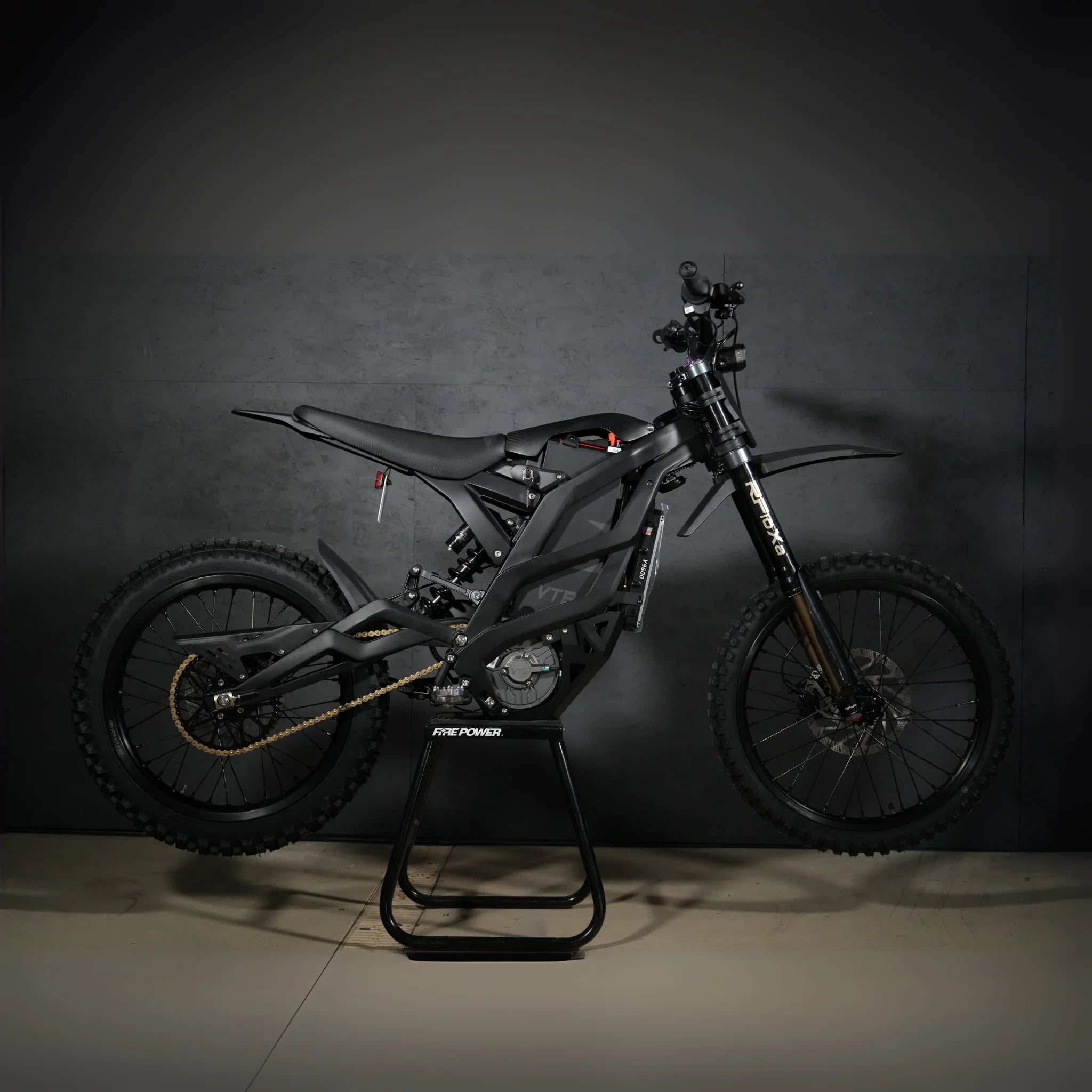

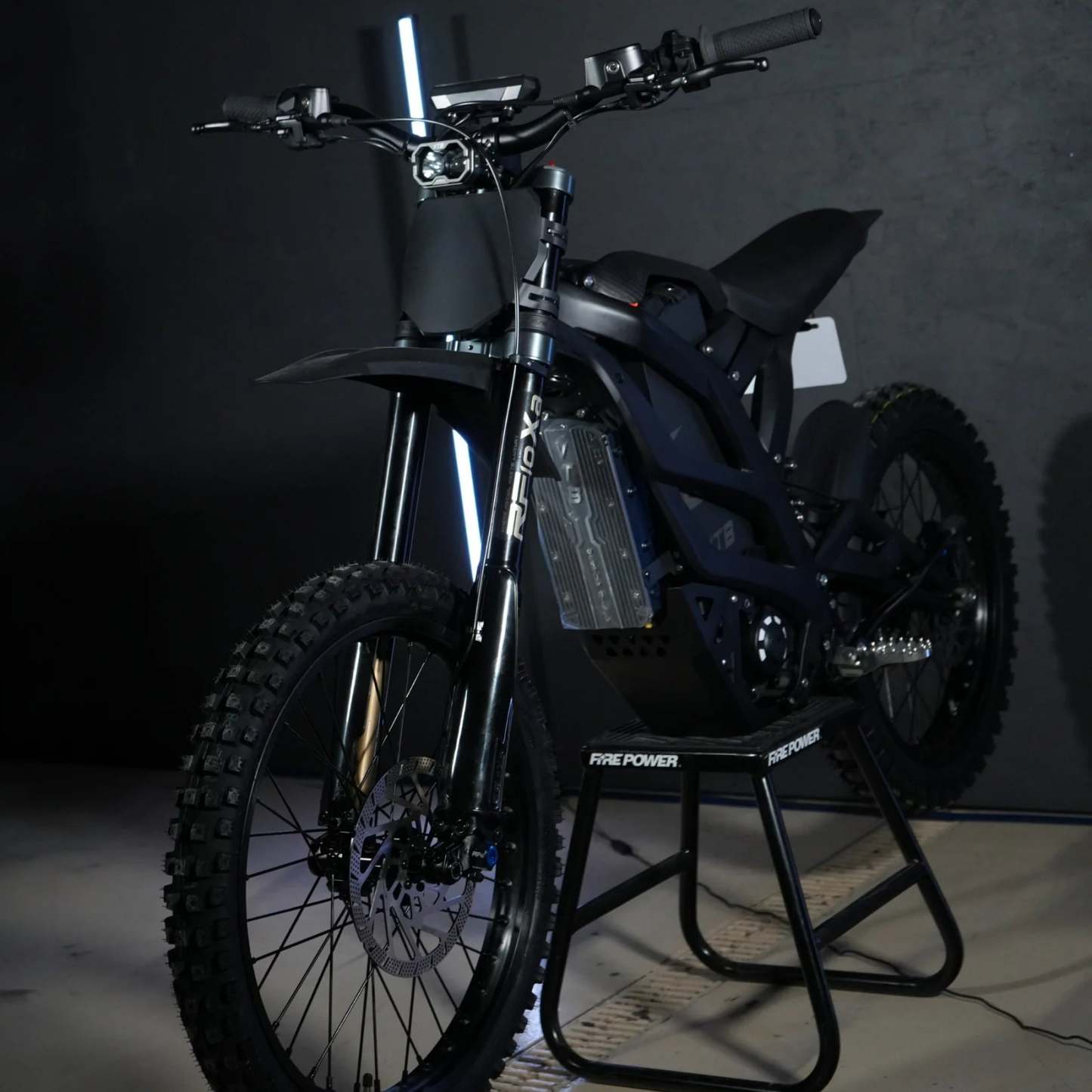

Ventus V1+

Name: Ventus V1+
Brand: mysite
Price: 29.9 USD
Availability: InStock

$29.90 USD

Quantity

In stock

Free worldwide shipping

Free returns

Carbon neutral

Secure payments

Description

Item: Ventus V1+

Financing: Available at checkout. As low as $85/month.

Peak Power: 28,000W

WLTP Range: 115Km

Battery Voltage: 72V

Battery Capacity: 50Ah

Battery Weight: 69kg

Dimension: 1870*755*1088mm

Weight: 51.2kg (69 Kg with battery)

Weight Capacity: 110Kg

Ground Clearance: 275mm

Wheelbase： 1250mm

Seat Height: 830mm

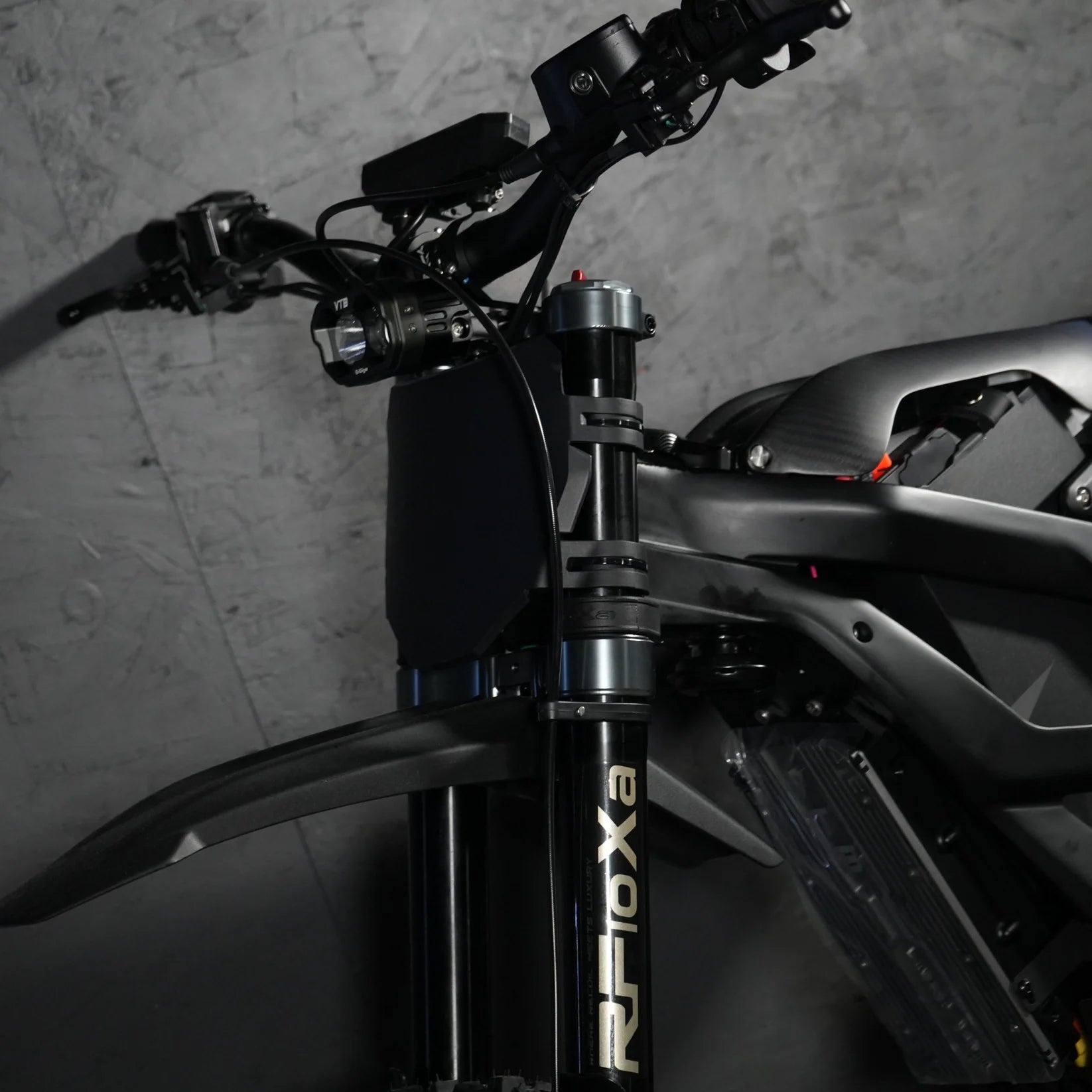

Fork Suspension: 200mm

Rear Suspension: 85-290mm

Motor: Permanent Magnet Synchronous Motor (PMSM)

Motor Power: 28,000W

Controller: Sine wave controller

Max Speed: 130 Km/h

Moderate-range battery life: 115km (40km/h)

Battery Type: Lithium-ion battery

Charging Time: 4.2h

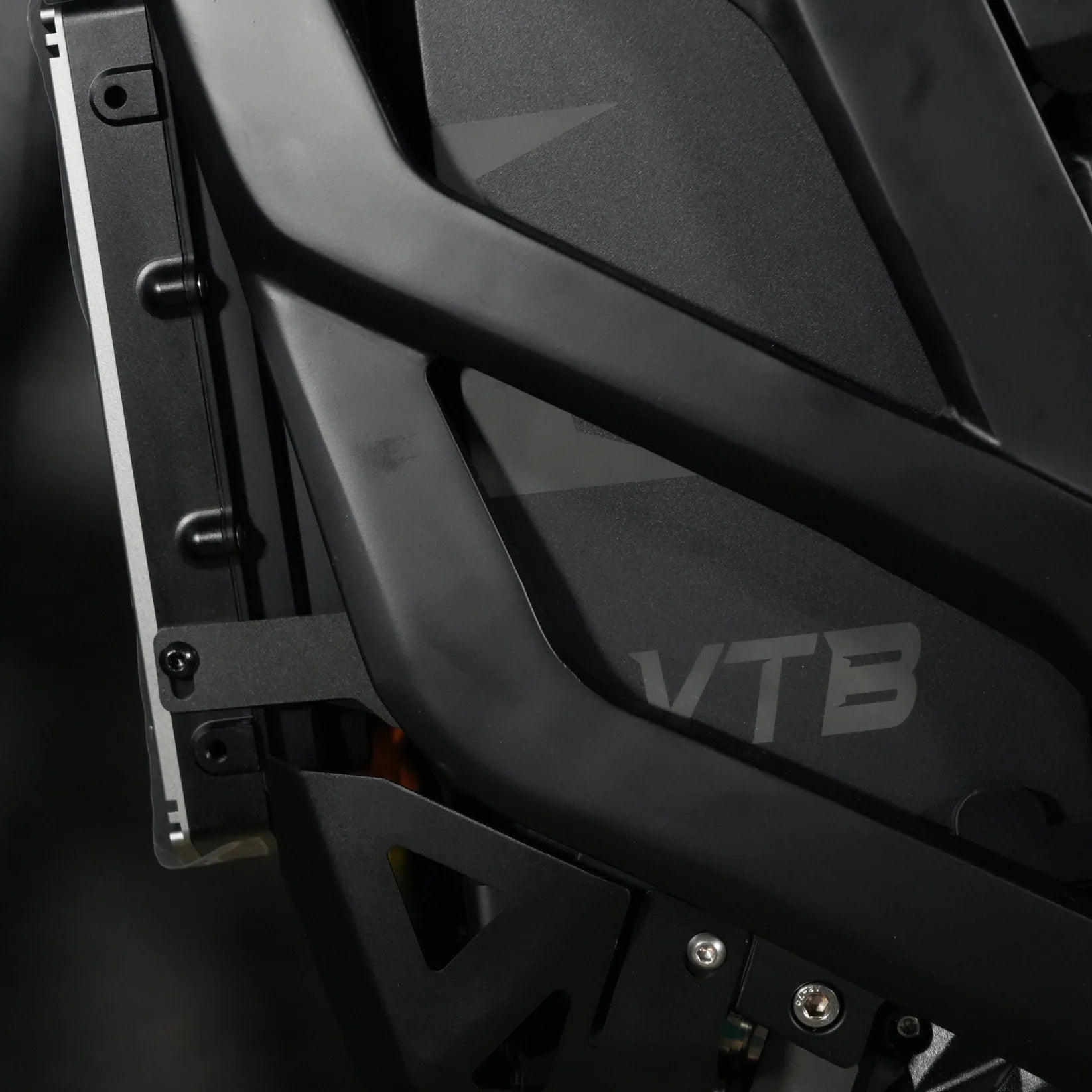

Frame: Aluminum alloy

Gear: Multi-speed internal hub allows 3 and 5 speeds

Cassette：70/100-19（front) and 3.0-18 (Rear)

Unlock: Near unlocking and PIN unlocking

Every Ventus V1+ bike is fully equipped coming out of the factory with ample 20 kw power.

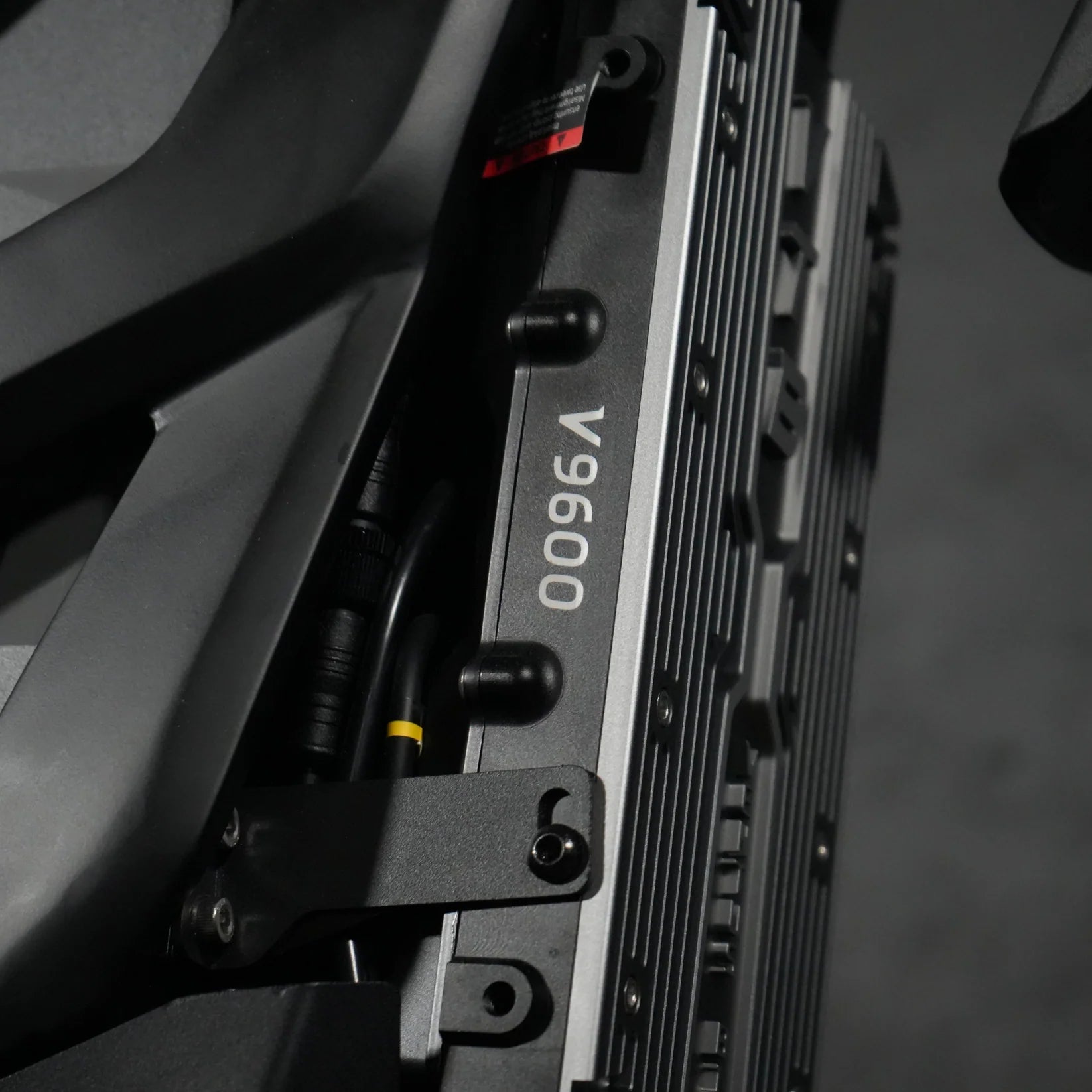

Made of 27100 Samsung cells, Ventus V1+ has a large battery capacity, 50Ah, perfect for long-distance ride.

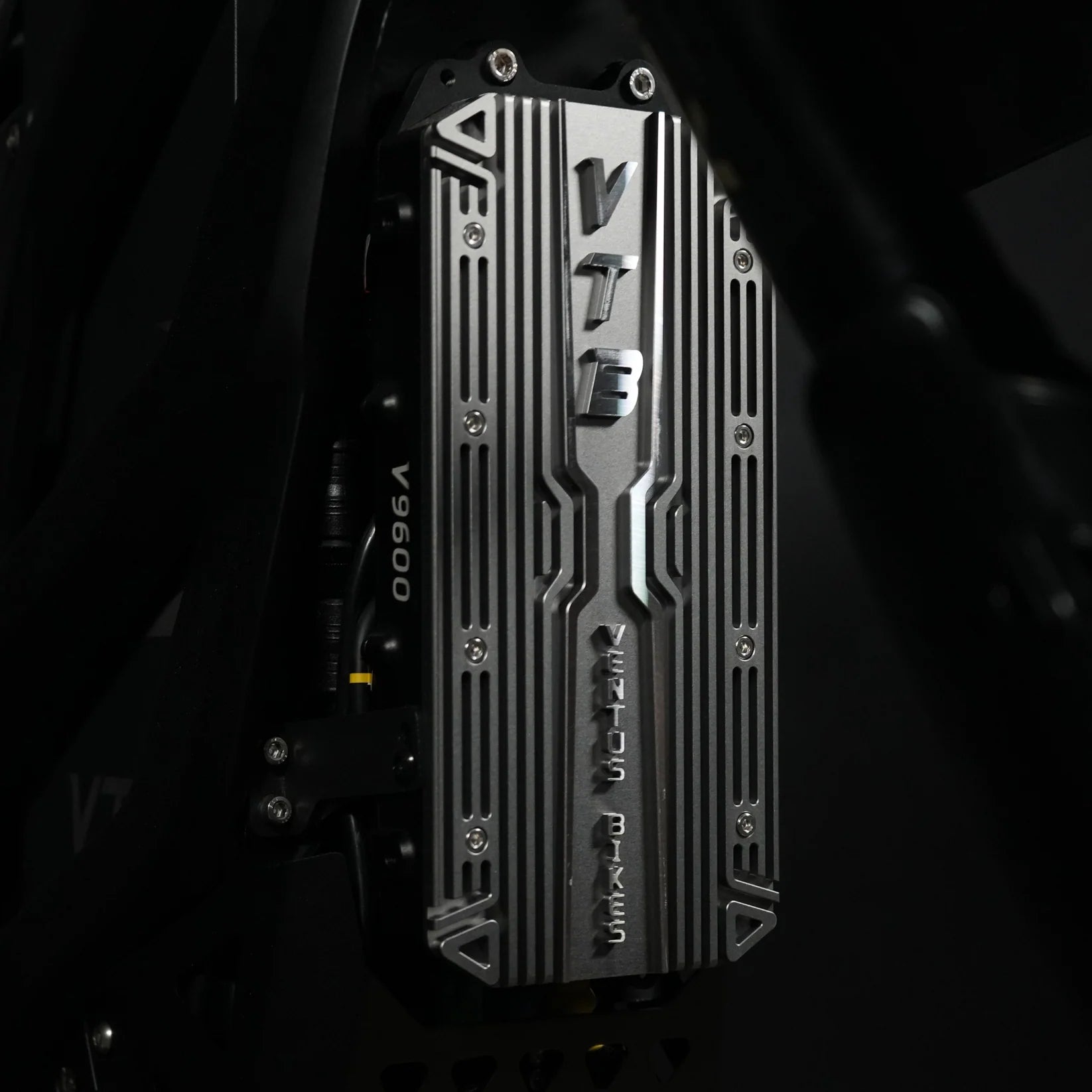

The controller program provides a smooth and easy user experience after it was debugged by professional ridders. The controlling APP allows great flexibility in configuring settings.
The electronic linear brake is as powerful as hydraulic brake, saving its battery usage by 30%.
Its multifunctional colored dashboard connects with the battery by bluetooth and demonstrates real-time battery capacity.
Near your phone or input PIN to unlock the bike. Key is no longer a problem!

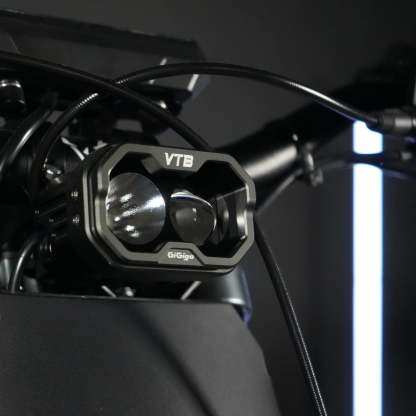

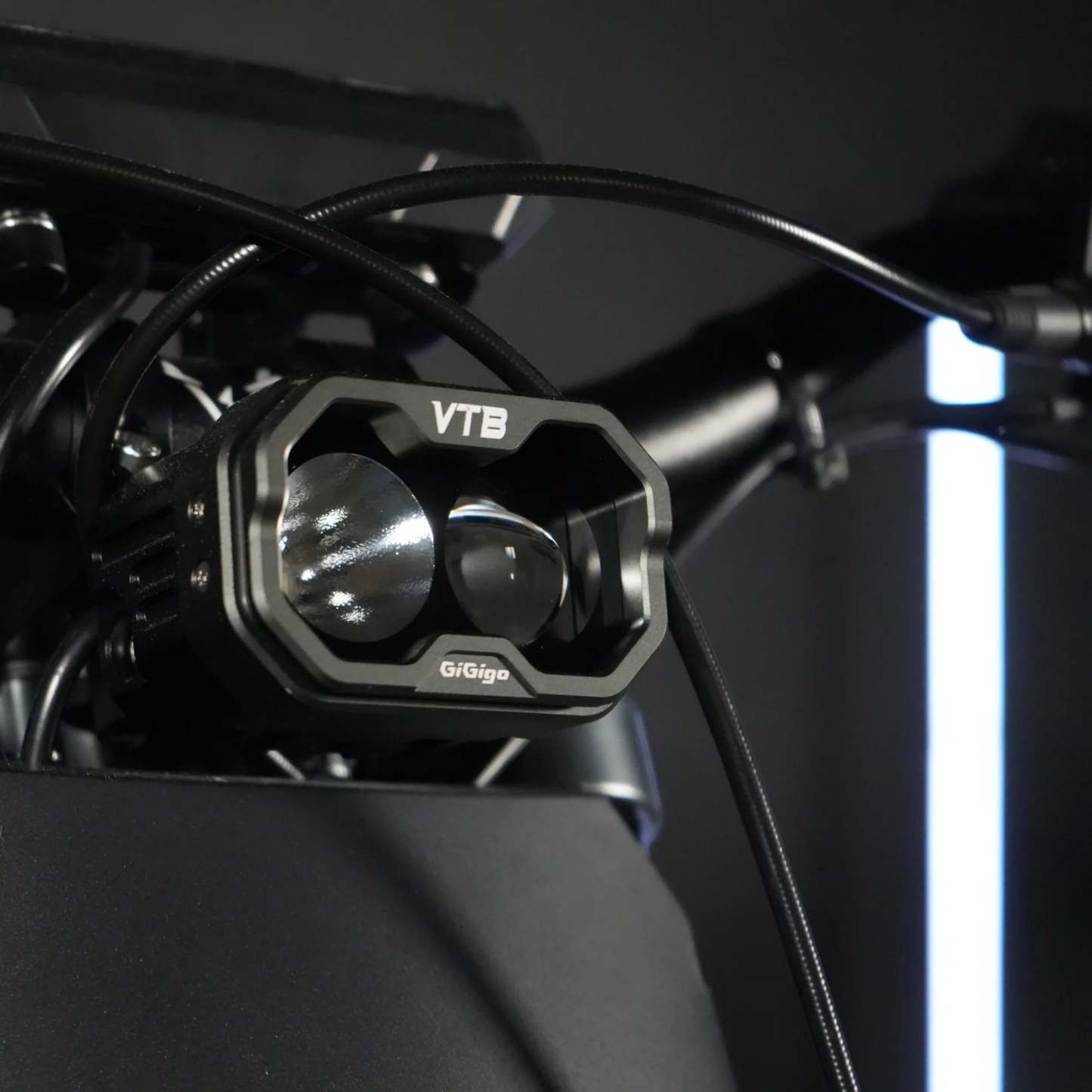

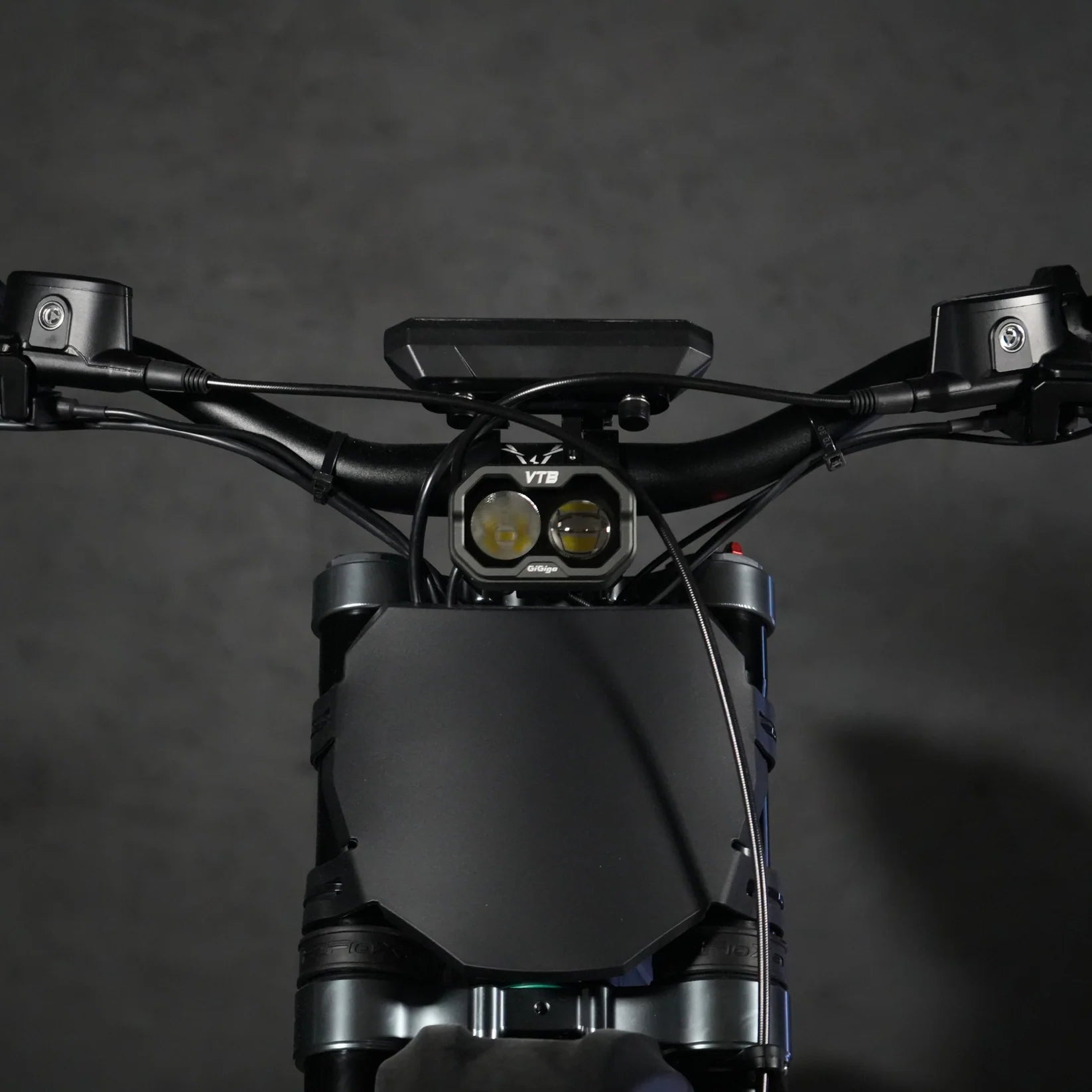

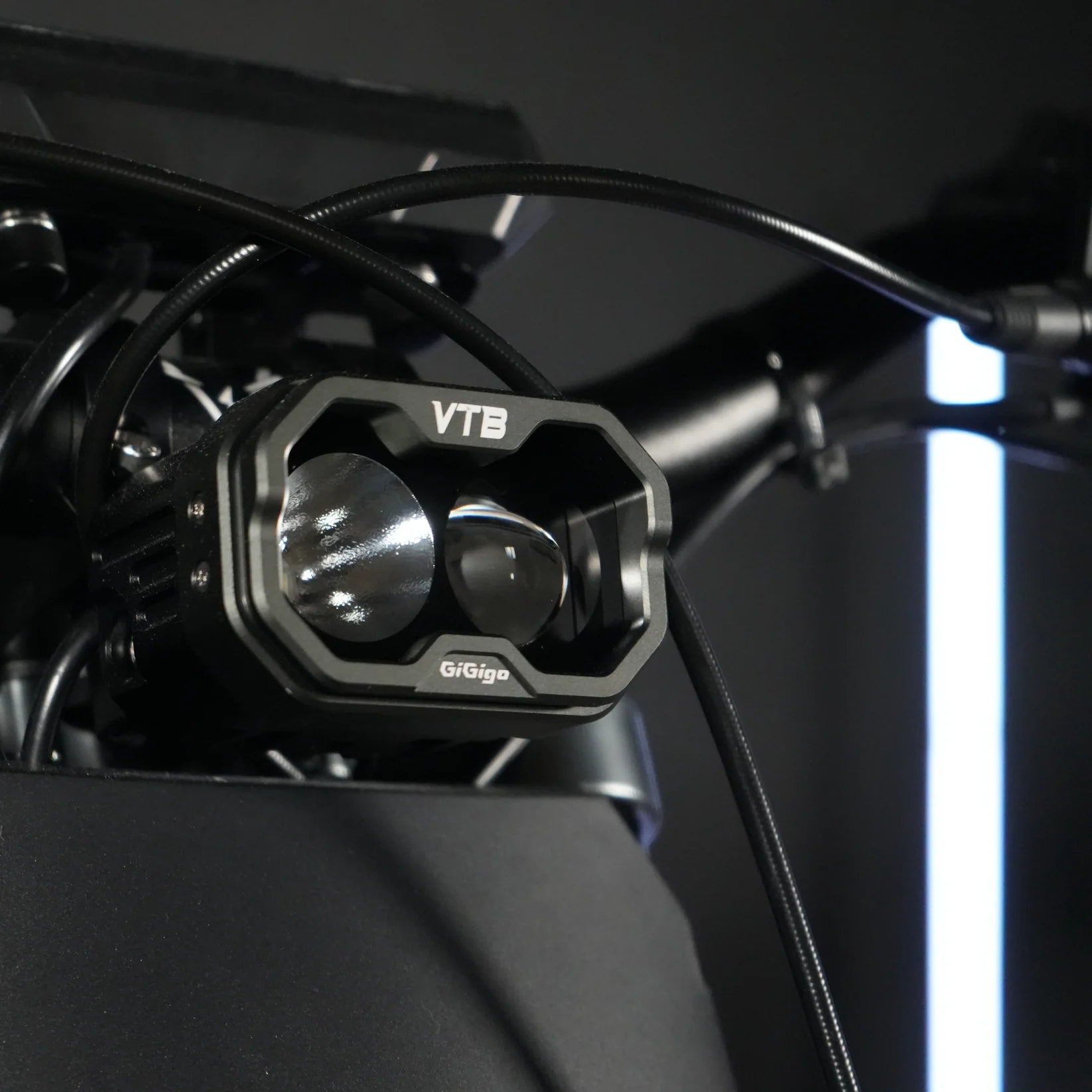

Premium GiGigo headlight, made of 40W LED bulbs. The reflector and lens work together to focus and distribute the light beam in a controlled pattern, ensuring optimal visibility without blinding oncoming drivers.

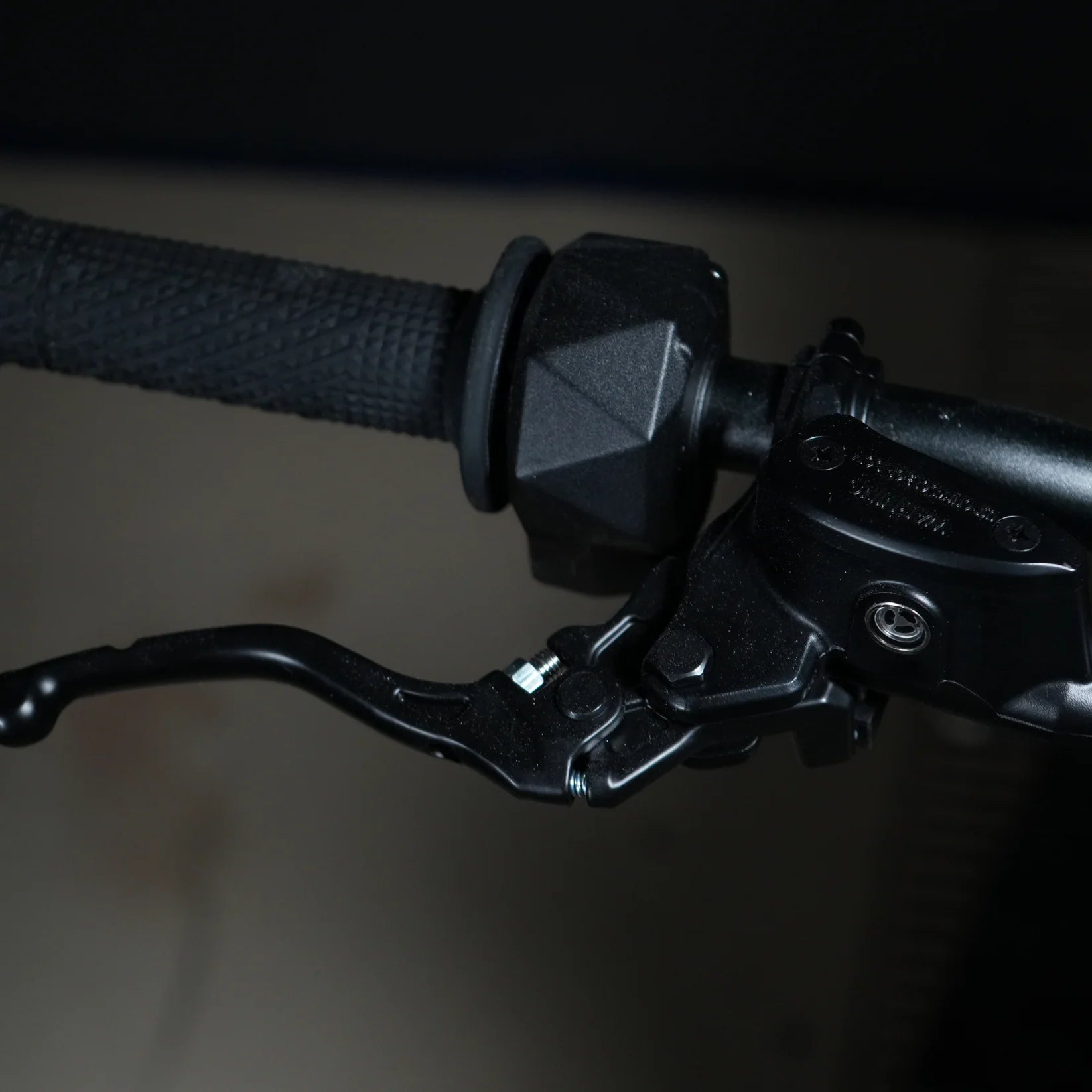

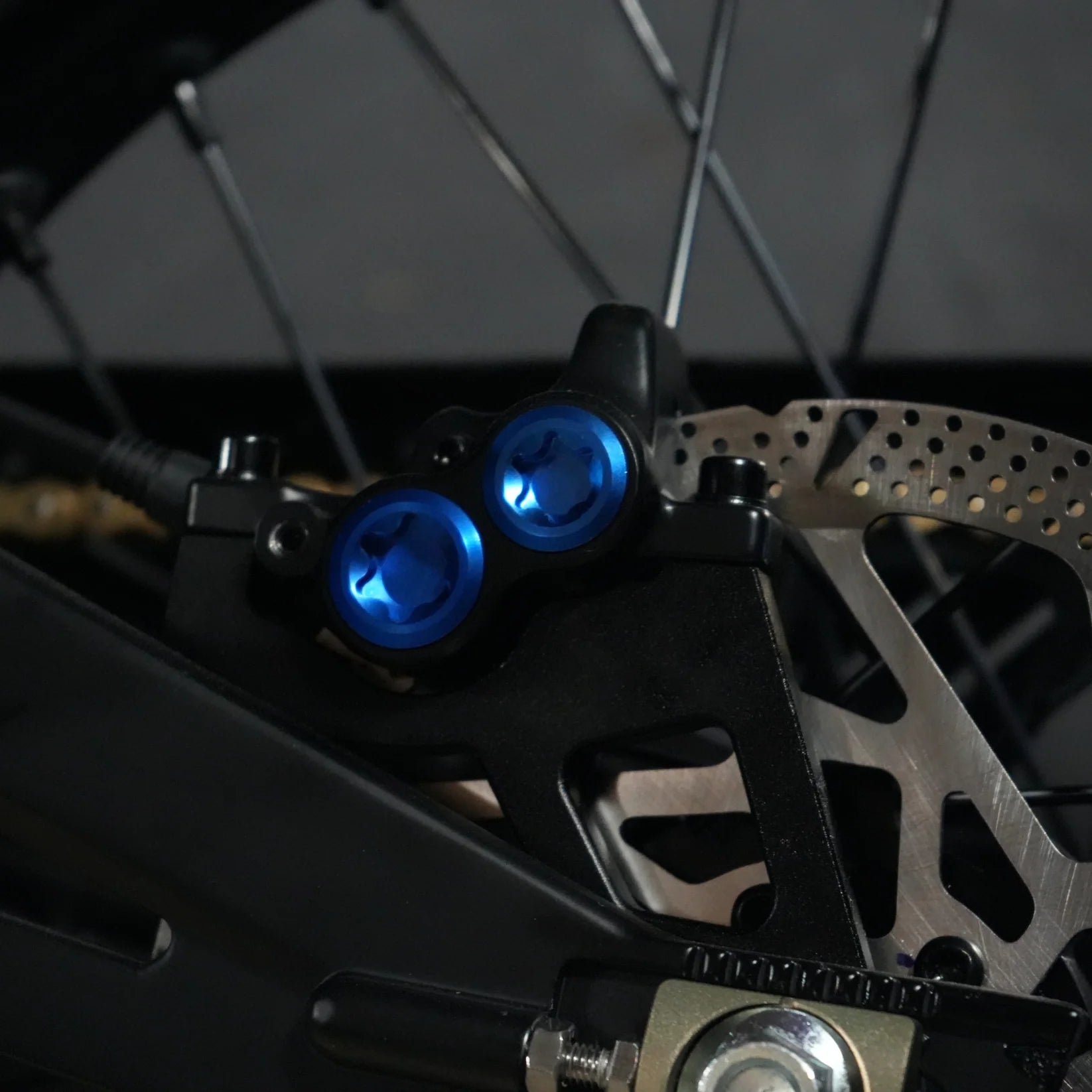

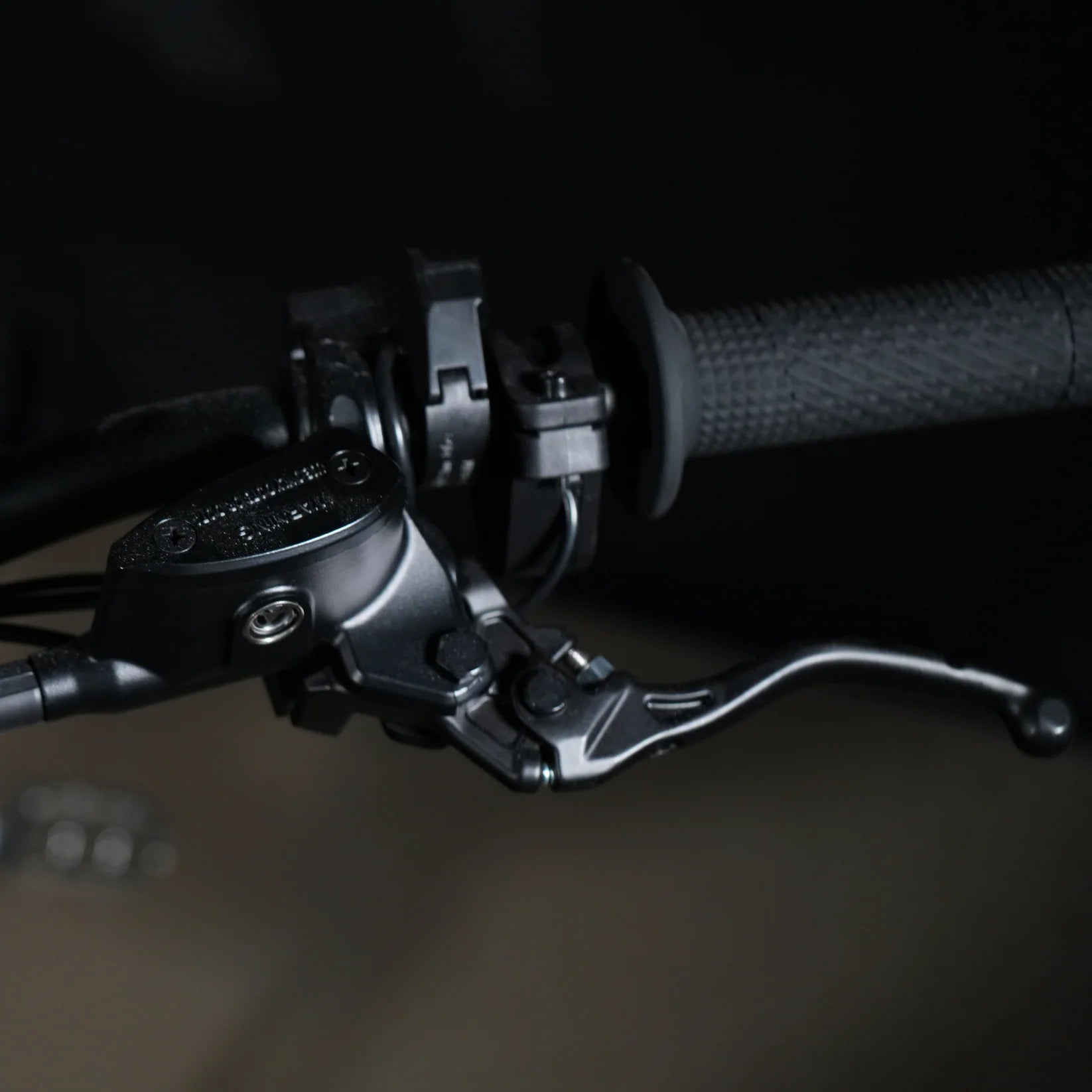

Ultra strong hydraulic brakes offer immediate stop with endurable brake pads and excellent high-performance.
The controller and dashboard supports OTA remote update and you can customize boot animation.

Ventus V1+ General Specification

Vehicle Model	Ventus V1+
Dimensions	1870mm755mm1088mm
Total Weight/Including Battery	51.2kg (113lbs) /69kg (152lbs)
Maximum Load Capacity	110kg (220lbs)
Minimum Ground Clearance	275mm
Wheelbase	1250mm
Seat Height	830mm
Front Fork Travel	200mm
Rear Suspension/Wheel Travel	85/290mm
Power System	High-speed Permanent Magnet Synchronous Motor + Sinusoidal Vector Controller
Maximum Output Power	28,000W
Maximum Torque of the Driving Wheel	390N.m
Maximum Speed	130km/h
Medium-speed Range	115km@40km/h
Tire Specifications	70/100-19, Rear 3.0-18
Unlocking Method	Sensory Unlocking + Password Unlocking
Torque of the Driving Wheel	390N.M
Peak Power	28000W
Range	115Km
High-performance lithium battery	72V50Ah
Ultra-lightweight	69kg
High Thrust-to-Weight ratio	0.39

Ventus V1+ Vehicle Specification

Chassis & Swingarm	Forged Aluminum
Chassis Surface & Colour Processing	Anodic Oxidation

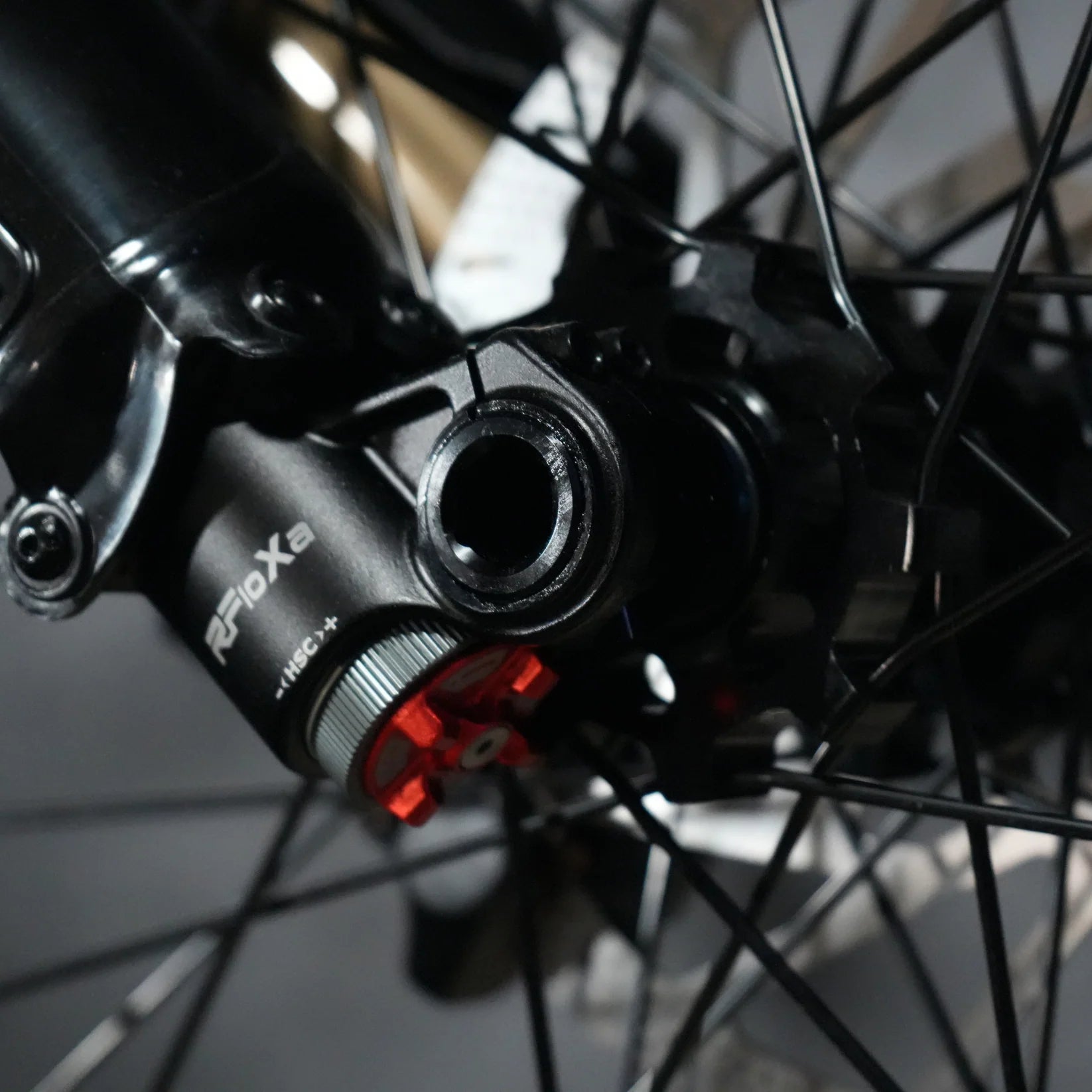

Front Suspension	Fastace 12RV, Adjustable Preload & Rebound

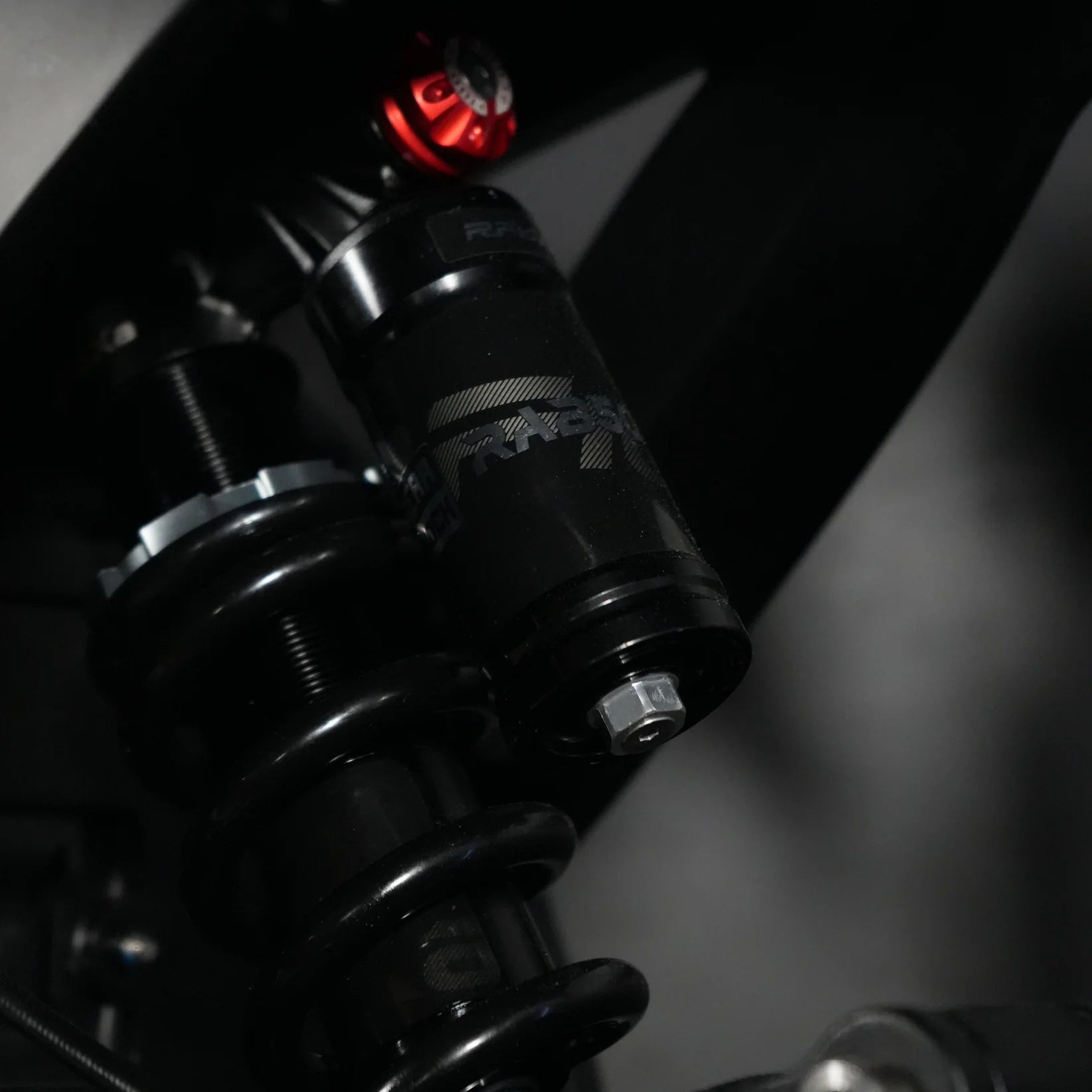

Rear Shock Absorber	79Bike i2 Shock 450 lb with TR Suspension Link System, Adjustable Compression & Rebound

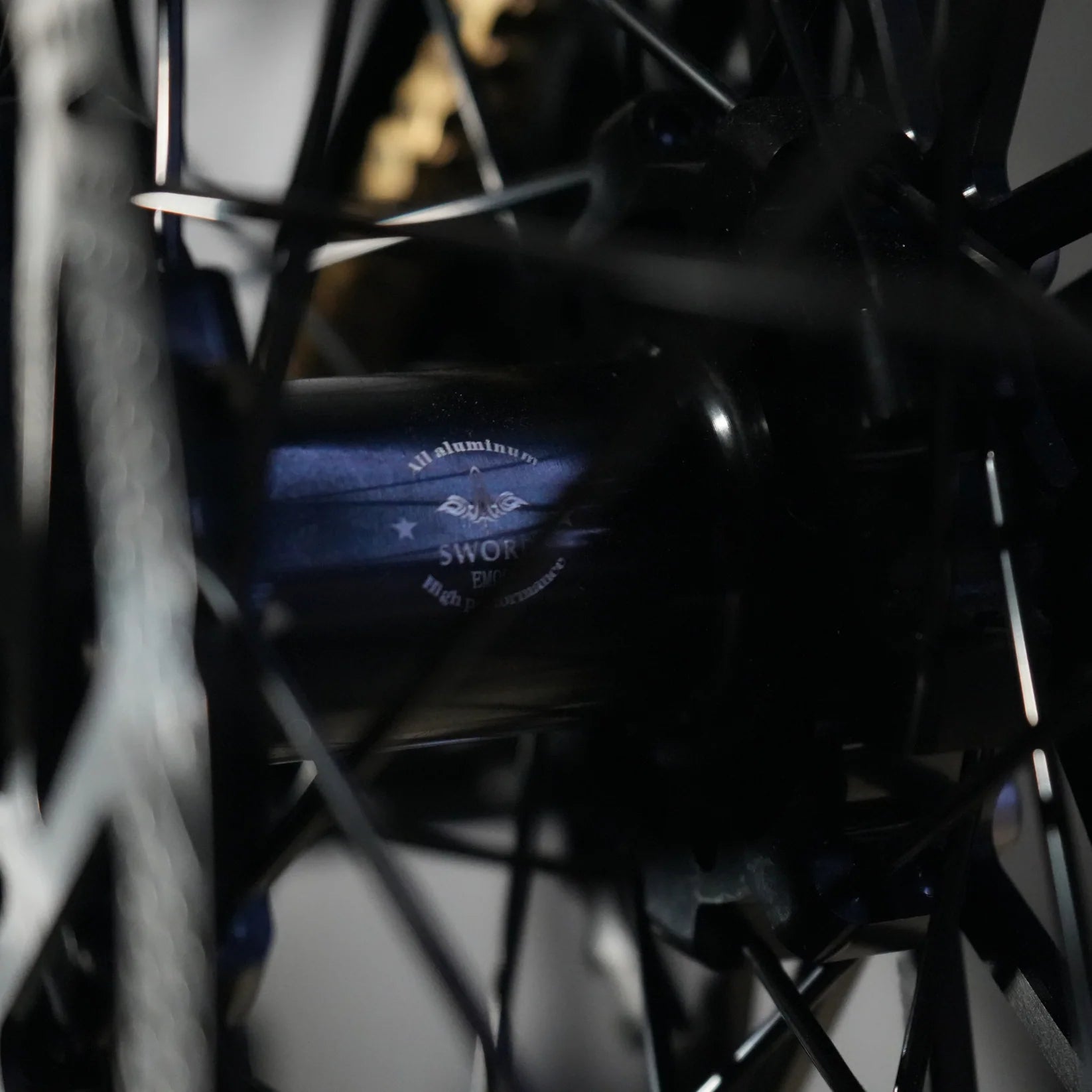

Wheel Type & Size	19 x 1.4 Wire-Spoke Wheels Front/Rear, Alloy Hubs
Tire Size	70/100-19 Front / 3.0-18 Rear
Max Range	100km @ 32km/h depending upon terrain
Net Weight	47kg (Plus Battery
Max Load	100kg (220 lbs.)
Max Climbing Angle	45 degrees

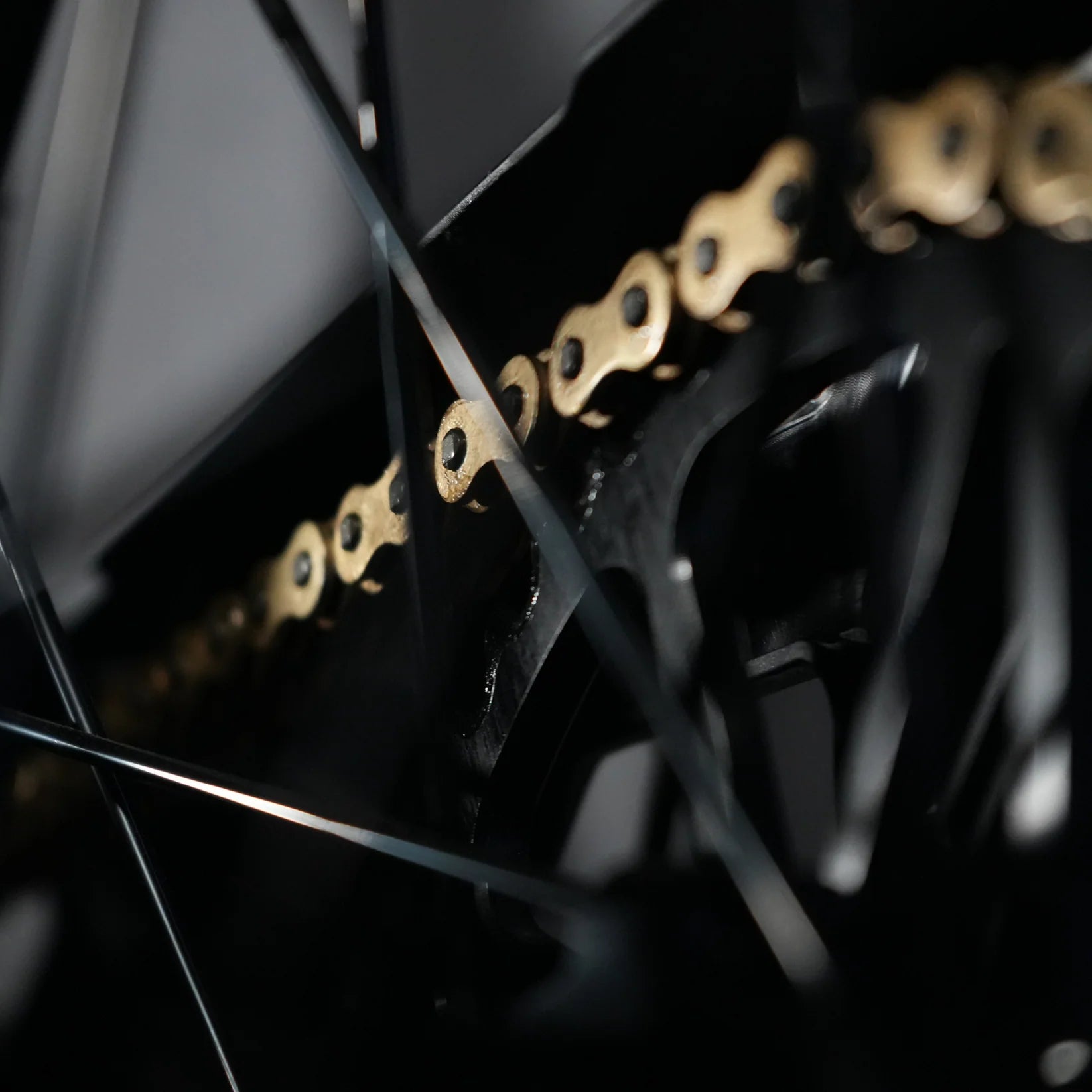

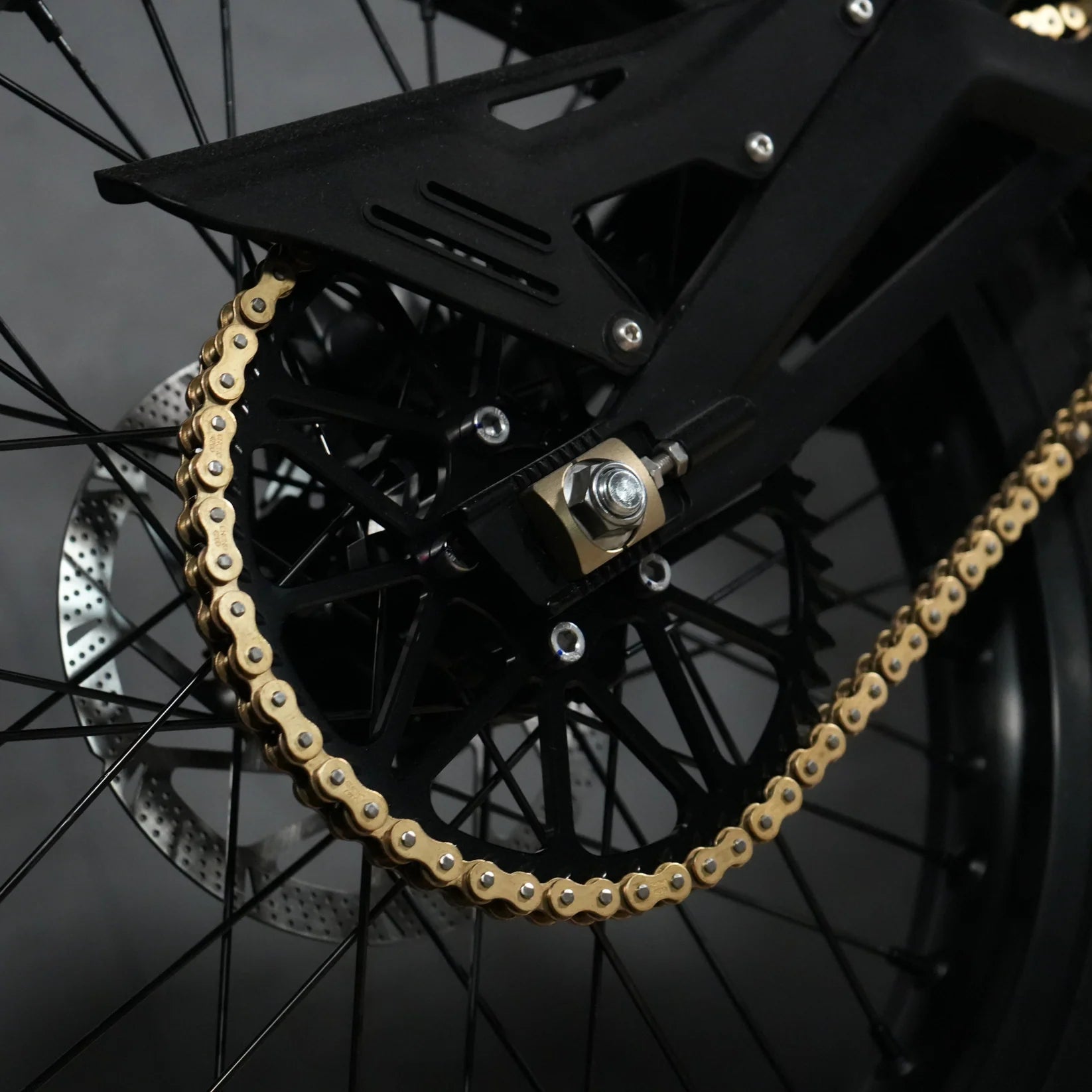

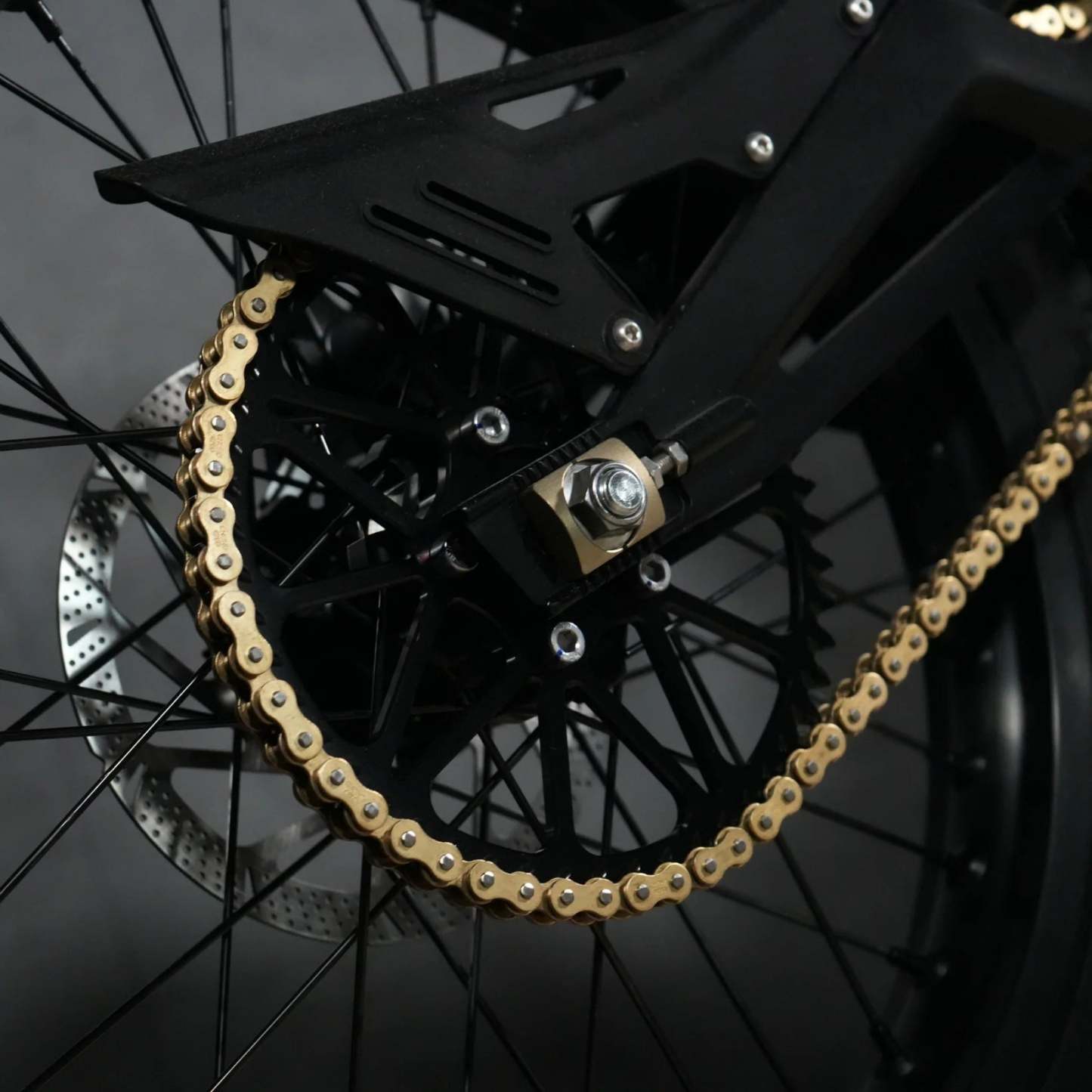

Rear Sprocket	52T
Side Stand	With Kill Switch
Vehicle Dimensions	1,870mm x 780mm x 1,040mm
Minimum Ground Clearance	270mm
Wheelbase	1,260mm
Seat Height	84-88cm

Ventus V1+ Controller Specification

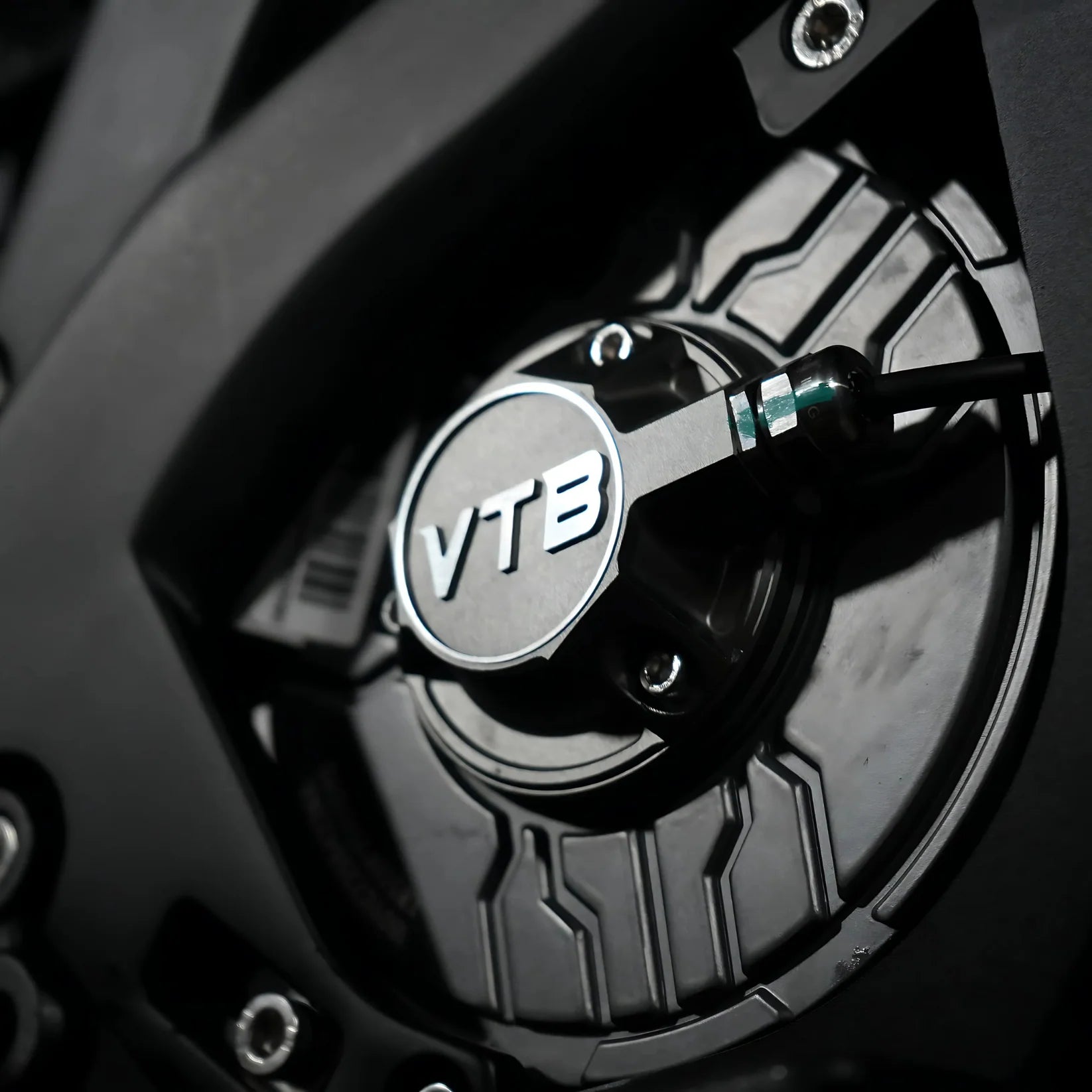

Ventus V1+ Motor Specification

Motor Type	PMSM
Weight / Motor External Diameter	7.0kg / 180mm
Motor Axial Length	130mm
Peak Efficiency	95.60%
Cooling Method	Air-Cooled
Rated Voltage	60V (DC)
Rated Power / Peak Power	3,000W / 6,000W
Motor Shaft Output Torque @ 1000RPM	35.40Nm
Rated Rotation Speed	4300rpm
Peak Efficiency	97.8%
Range of Efficiency (≥80)	1.4Nm – 21.5Nm
